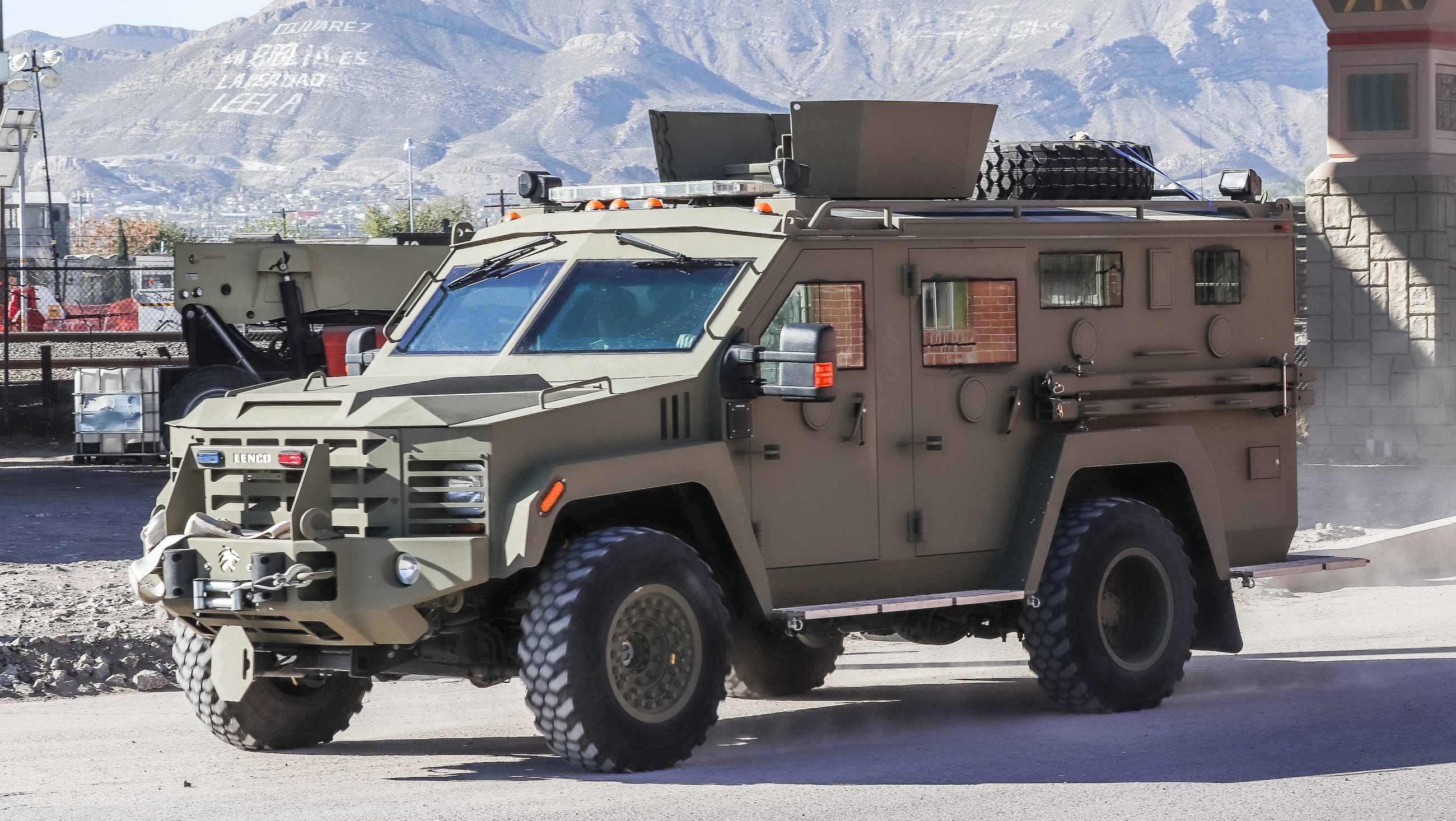

Armored Personnel CarrierA System Design Study

1. Introduction & Problem Statement

An Armored Personnel Carrier (APC) is a wheeled or tracked ground vehicle designed to transport personnel and equipment safely through contested or hostile territory. Unlike a tank, an APC is not built primarily to deliver offensive firepower — its defining purpose is protected mobility: getting people from one point to another while shielding them from small-arms fire, blast overpressure, and deliberate interference from hostile actors along the route. Most APCs carry a crew of two to three (driver, vehicle commander, and often a gunner) plus a passenger compartment sized for a full squad or equivalent group, and many mount a single defensive system — traditionally a machine gun in a roof turret, increasingly supplemented by sensors and non-lethal deterrents — for self-protection rather than sustained offense. The vehicle class dates to armored trucks of the First World War and matured through the halftracks and M113 series of the mid-20th century into today's wheeled and tracked variants used by militaries, paramilitary police units, and border security forces worldwide.

Problem statement. Transporting people through territory where hostile actors may attempt to stop, damage, or board the vehicle is fundamentally a conflict between two objectives that cannot both be maximized: get there (mobility, speed, route flexibility) and survive the trip (mass, armor, redundancy). A vehicle optimized purely for protection is too heavy and slow to be useful; a vehicle optimized purely for speed offers no protection worth the trip. The APC exists as the engineered compromise between these two pressures, and nearly every design decision documented in this paper — hull geometry, suspension travel, sensor placement, response-escalation logic — is a specific answer to that tension. This paper treats that compromise as an engineering problem to be decomposed, not assumed.

This paper walks a single representative APC through the standard early-stage systems engineering workflow, in the order a working engineering team would actually produce it: identifying stakeholders and their interests (Section 2); deriving an operational context diagram that fixes the system boundary (Section 3); describing missions in capability terms (Section 4); decomposing the mission into a functional architecture independent of physical solution (Section 5); mapping those functions onto a physical hierarchy of subsystems and components (Section 6); writing traceable requirements back to the stakeholder needs and defining how each will be verified (Section 7); detailing the threat-detection-and-neutralization logic that is this system's most safety-critical behavior (Section 8); assessing and prioritizing the risks the design must retire (Section 9); working through one real trade study the design team would have faced (Section 10); mapping the generic SE activities onto the APC via the V-model (Section 11); and tracing the delivery and deployment lifecycle that carries a finished vehicle from the production line to an operational unit (Section 12). The diagrams throughout follow SysML notation conventions and the structure follows INCOSE systems-engineering fundamentals^[1]. This is reference and practice work — not an artifact from an actual acquisition program, and no specific real-world platform, armor specification, or weapons system is represented.

2. Stakeholders

Stakeholder analysis comes first in a disciplined SE process — before context, before requirements — because every exchange in the context diagram and every requirement in Section 7 has to trace back to someone's actual need. Eight parties have a direct stake in the APC across its lifecycle. One of them, deliberately, is not on the program's side: a system built to move people safely through hostile territory has an adversary baked into its mission statement, and that adversary belongs in the stakeholder list, not just in a threat appendix.

3. Context Diagram

The context diagram fixes the system boundary: the APC is drawn as a single black box, and every actor from Section 2 that exchanges something with it during operations is drawn around it. Each arrow carries Forces, Energy, Data, Signals, Services, or Materials crossing that boundary — nothing more abstract than that, per INCOSE convention. This diagram covers the operational context only; a separate diagram would be drawn for the development or test context, which involves a different set of actors (engineers, testers, suppliers) not shown here.

4. Concept of Operations

Mission descriptions are told from the system's perspective — capabilities, not solutions — per INCOSE OpsCon convention. Inputs and outputs exchanged with the actors in Section 3 take the form of Forces, Energy, Data, Signals, Services, or Materials, exactly as drawn in the context diagram. These descriptions are what the functional architecture in Section 5 is derived from.

5. Functional Architecture

Before any hardware is chosen, good SE practice decomposes the mission into functions — verbs, not nouns; what the system must do, independent of how. This matters because a function like "sense and neutralize threats" can be satisfied by very different physical solutions (an optical camera versus an acoustic sensor array, a warning siren versus a lockdown relay), and locking the physical choice in too early forecloses options the trade study in Section 10 should actually be allowed to weigh. The five top-level functions below are derived directly from the mission descriptions in Section 4; the physical hierarchy in Section 6 is what eventually implements them.

6. Physical Architecture

The physical hierarchy decomposes the realized system into progressively finer elements. Level 1 is the system itself; Level 2 is its primary subsystems; Level 3 is the components within each subsystem. Three branches — Steering, Armor/Hull, and the Security System — are carried one level further to Level 4 to illustrate inner subcomponent decomposition, the standard depth for early-stage systems engineering practice. The Security System is the physical realization of the "Sense & Neutralize Threats" function from Section 5, and did not exist in an earlier draft of this hierarchy — it was added once that function was made explicit, which is the traceability working as intended rather than scope creep.

The Security System is the newest subsystem in this hierarchy and the one most directly tied to the "neutralize vandals" half of the mission. Its Sensor Suite (perimeter cameras, an acoustic gunshot/impact detector) performs the Observe step of the loop in Section 8; its Threat Classifier performs Orient; its Deterrent Unit (hailing device, door/window lockdown relay) and the Turret System's Armament perform Act, in that escalation order — the system is required to attempt the lowest-severity response the situation allows before a higher one, which is detailed in Section 7's requirements and Section 9's risk treatment. Its Alert & Comms Unit performs the Communicate Status function from Section 5, independent of the vehicle's primary radio, so a contact report can still reach Command even if the main comms subsystem is damaged.

7. Requirements & Verification

Every requirement below traces to a stakeholder need from Section 2, a mission from Section 4, or a function from Section 5 — the Source column makes that traceability explicit, which is the entire point of writing requirements this way rather than as a disconnected wish list. Each requirement is paired with a verification method, per the four INCOSE-standard methods: Inspection (visual/dimensional check), Analysis (modeling, simulation, calculation), Demonstration (show the behavior occurs, without instrumented proof), and Test (instrumented, measured, repeatable). This Section 7 right-hand column is what Section 11's V-model right-hand side (verification activities) is actually executing against.

8. Threat Detection & Neutralization

This is the behavior that satisfies the second half of the mission statement — "neutralize vandals who try to harm passengers" — and it is modeled here as an activity diagram structured around the military Observe–Orient–Decide–Act (OODA) loop^[2], the standard framework for reasoning about time-critical response under uncertainty. The loop runs continuously while the vehicle is in transit; every requirement in Section 7 that mentions the Security System is a constraint on one node of this diagram.

Two design choices in this diagram are worth calling out explicitly, because they are the kind of decision a systems engineer has to defend in a design review, not just draw:

• The maneuver branch is unconditional; the engagement branch is not. Moving the vehicle out of a threat's effective range is reversible and low-risk even if the classification turns out to be wrong. Firing a weapon is not. Splitting these into parallel forks with different authorization requirements means the vehicle always does the safe, reversible thing immediately, while the irreversible thing waits on a human.
• Classification happens before the imminence decision, not after. This ordering means a low-confidence or ambiguous classification (addressed by REQ-11 and risk R4 in Section 9) can route to "no imminent threat" and loop back to continued monitoring, rather than forcing every detection into the engagement branch by default.

9. Risk Assessment

A 5×5 likelihood–severity matrix is the standard early-lifecycle tool for prioritizing which risks the design must retire first^[1]. Four representative risks are plotted below; their positions are judgment calls consistent with the mission profile in Section 4, not measured data from a real program.

10. Trade-Off Analysis

This section works through one real trade study the hull geometry decision in Section 6 would have forced on a design team: the shape of the underbody. This is the single highest-leverage decision against risk R2 (IED/mine strike, Section 9), and it directly trades against REQ-02 (sustained speed) and vehicle weight — the mobility-versus-protection tension named in Section 1's problem statement, made concrete.

The deep V-hull is selected despite its mobility and interior-volume costs because R2 sits in the extreme risk zone (Section 9) — the single highest-severity, non-negligible-likelihood risk on the matrix. The rollover risk this choice introduces is real, but it is addressed by a different subsystem (Suspension, via a lower unsprung mass and a wider track) and by crew training on cross-slope routing, rather than by weakening the hull geometry that is this vehicle's primary answer to its worst-case threat. This is the kind of trade a systems engineer is paid to make explicit: not "armor is good," but "this specific risk is severe enough to accept this specific, named cost elsewhere in the system."

11. Systems Engineering Activities (V-Model)

Most systems engineering activities are the same across industries and organizations. Applied to the APC, they follow the classic V-model: the left side decomposes stakeholder needs down to individual components; the apex is where physical fabrication happens; the right side climbs back up through verification, confirming each level of design against its corresponding requirement. The requirements and verification methods in Section 7 are what the right-hand side of this diagram is actually checking.

In plain terms: engineers first figure out what the APC needs to do (missions, requirements), then break that down into how — subsystems, then individual components. Parts get built and assembled at the bottom of the V. Climbing back up, each level gets tested against the design decision that created it, all the way up to confirming the whole vehicle does what the original mission required.

12. Delivery & Deployment Lifecycle

A finished APC rolling off the production line is not yet a capability — it still has to reach a unit, get accepted, and put crews through training before it is ready for tasking. This section traces that path end to end, including the resources consumed at each step, illustrating that the "system" extends well beyond the end item itself.

A completed APC passes final quality checks and is prepared for shipment — secured to a pallet, wrapped and waterproofed against corrosion during transit, with tie-downs rated for the trip ahead. A heavy-haul lowboy trailer, often with oversize-load escort vehicles, moves the vehicle to a receiving depot or port. There, government inspectors perform a receiving inspection and formally accept the vehicle on behalf of the unit, transferring responsibility from manufacturer to operator.

Once accepted, the APC is fielded to its gaining unit, where crews go through vehicle-specific training — classroom instruction, simulator time, and live driving/gunnery ranges — before ever taking the vehicle into an operational tasking. A final functional check-out at the unit's own motor pool confirms every subsystem operates correctly after transit and re-fueling/re-arming. Only after this checklist is signed off is the vehicle marked ready for tasking and released into the operational rotation described in Section 4.

13. Conclusion

This paper walked one system through the complete early-lifecycle thread of systems engineering: from stakeholders who never touch a single bolt (Section 2) to a specific hull-geometry trade with a named cost and a named justification (Section 10). The thread holds together because every section answers to the one before it — the Security System in Section 6 exists because Section 5 named a function it has to realize, which exists because Section 4 described a mission that needs it, which exists because Section 2 named a stakeholder, the Hostile Actor / Vandal, whose presence makes the whole protection problem non-trivial in the first place.

The two engineering decisions this paper returns to most often — the deep V-hull traded against rollover risk (Section 10) and the human-authorization gate traded against response speed (Sections 7–8) — are not arbitrary design flourishes. They are the two places where "transport passengers safely" and "neutralize vandals who try to harm passengers" pull in different directions, and where a systems engineer's job is to make the trade explicit, defensible, and traceable rather than hidden inside a part someone just happened to choose. That is the actual discipline of systems engineering: not knowing more facts about armored vehicles, but being able to show your work from stakeholder need to verified requirement, every time, for every subsystem.

14. References & Glossary

Glossary

APC

Armored Personnel Carrier — the system under study in this paper.

BDD

Block Definition Diagram — a SysML diagram type showing structural decomposition of a system into blocks (parts).

INCOSE

International Council on Systems Engineering — publisher of the Systems Engineering Handbook referenced throughout this paper.

OpsCon

Concept of Operations — a description of system behavior from the system's own perspective, in capability terms rather than implementation terms.

OODA

Observe–Orient–Decide–Act — a decision-making loop used in Section 8 to structure the threat-response logic.

SE

Systems Engineering.

SysML

Systems Modeling Language — the diagram notation (BDD, activity, context) used throughout this paper.

V-Model

A systems engineering lifecycle model (Section 11) pairing each decomposition activity on the left side with a corresponding verification activity on the right.
